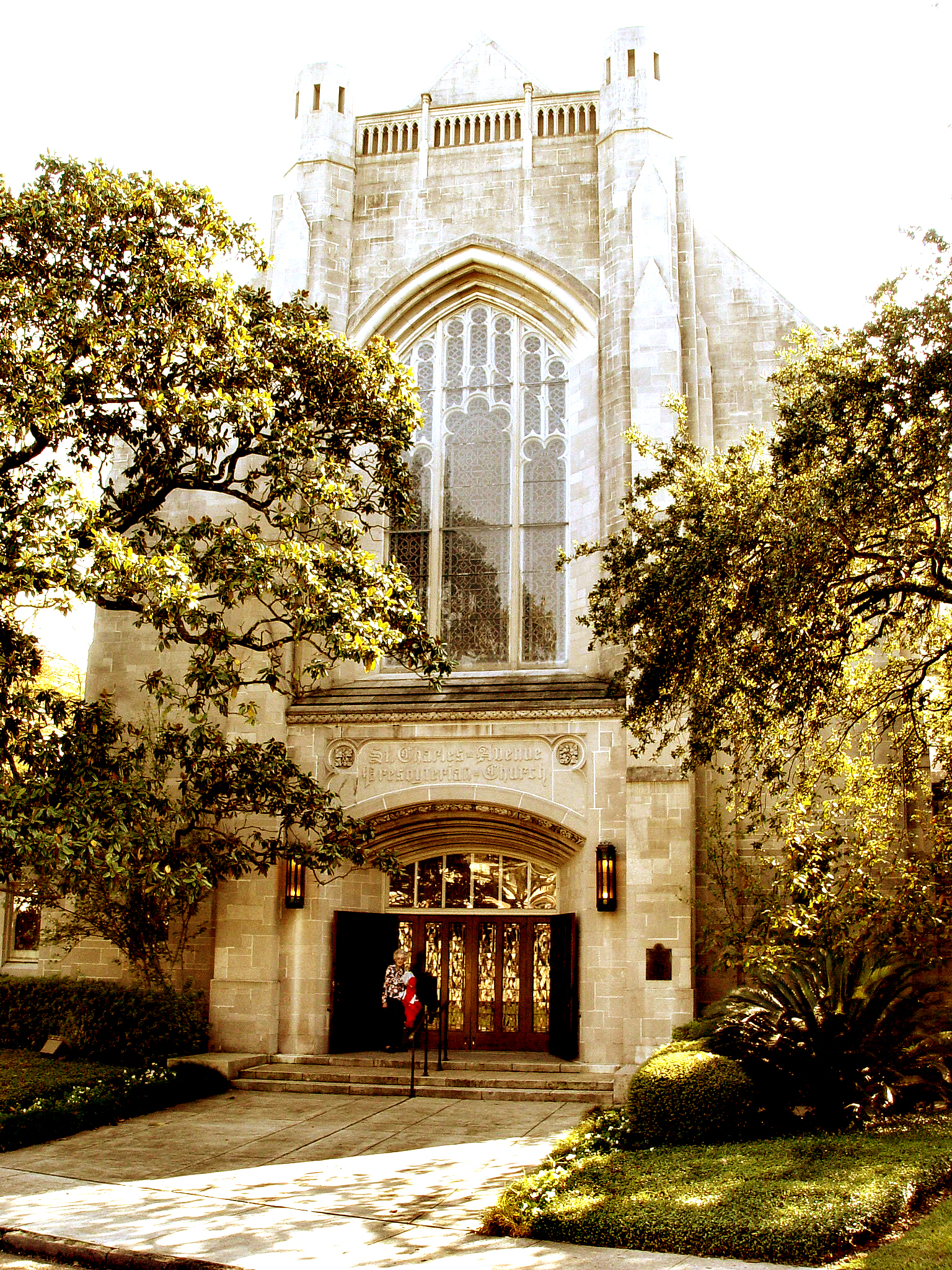

SAINT CHARLES AVENUE PRESBYTERIAN CHURCH
1545 State Street at St. Charles Ave., New Orleans, LA
|
Click images to enlarge.
 |
|
 |
|
 |
|
 |
 |
 |
 |
 |
 |

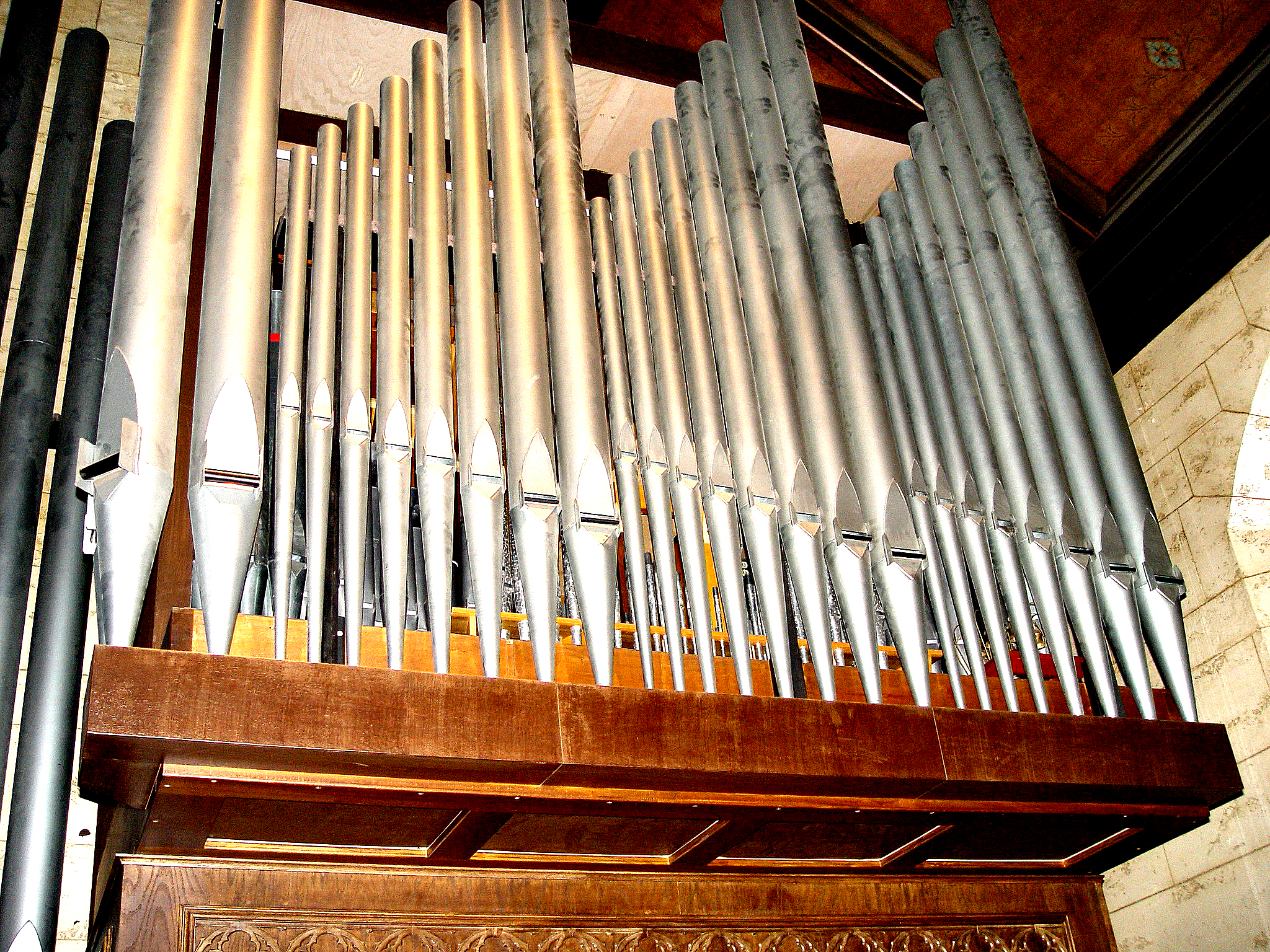

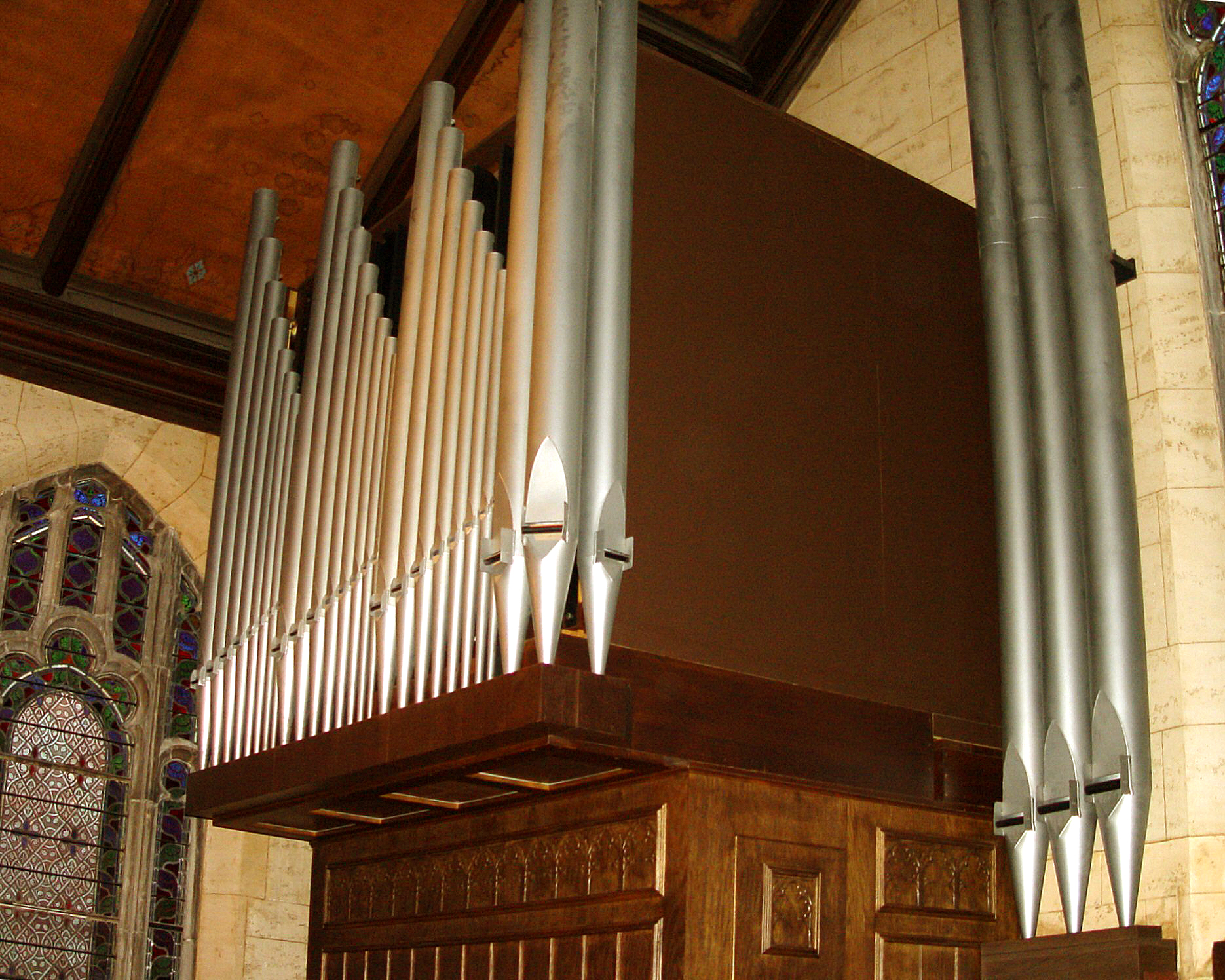

Specifications for Austin Organs,
Inc., Opus 2643, 1980 |
|||
GREAT |
SWELL |
CHANCEL |
PEDAL |
| Principal 8 | Rhor Fl'te 8 | Holz Gedeckt 8 | Principal 16 |
| Bourdon 8 | Gemshorn 8 | Viola 8 | Gedeckt 16 |
| Gemshorn 8 (Sw) | Gemshorn Celeste 8 | Voix Celeste 8 | Lieblick [sic] Gedeckt 16 |
| Octave 4 | Principal 4 | Prestant 4 | Octave 8 |
| Nachthorn 4 | Koppel Fl`te 4 | Doublette 2 | Rohr Fl `te (Swell) |
| Spitz Fifteenth 2 | Block Fl`te 2 | Fagott 8 | Lieblick [sic] Gedeckt 8 |
| Flurmixture IV | Sesquialtera II [12-17] | Tremolo | Choral Bass 4 |
| Krummhorn 8 | Scharf III | Chancel 16 | Rausch Quint II |
| Great Unison Off | Trompette 8 | Chancel Unison Off | Trompette 16 |
| Carillon | Tremolo | Chancel 4 | Krummhorn (Great) 4 |

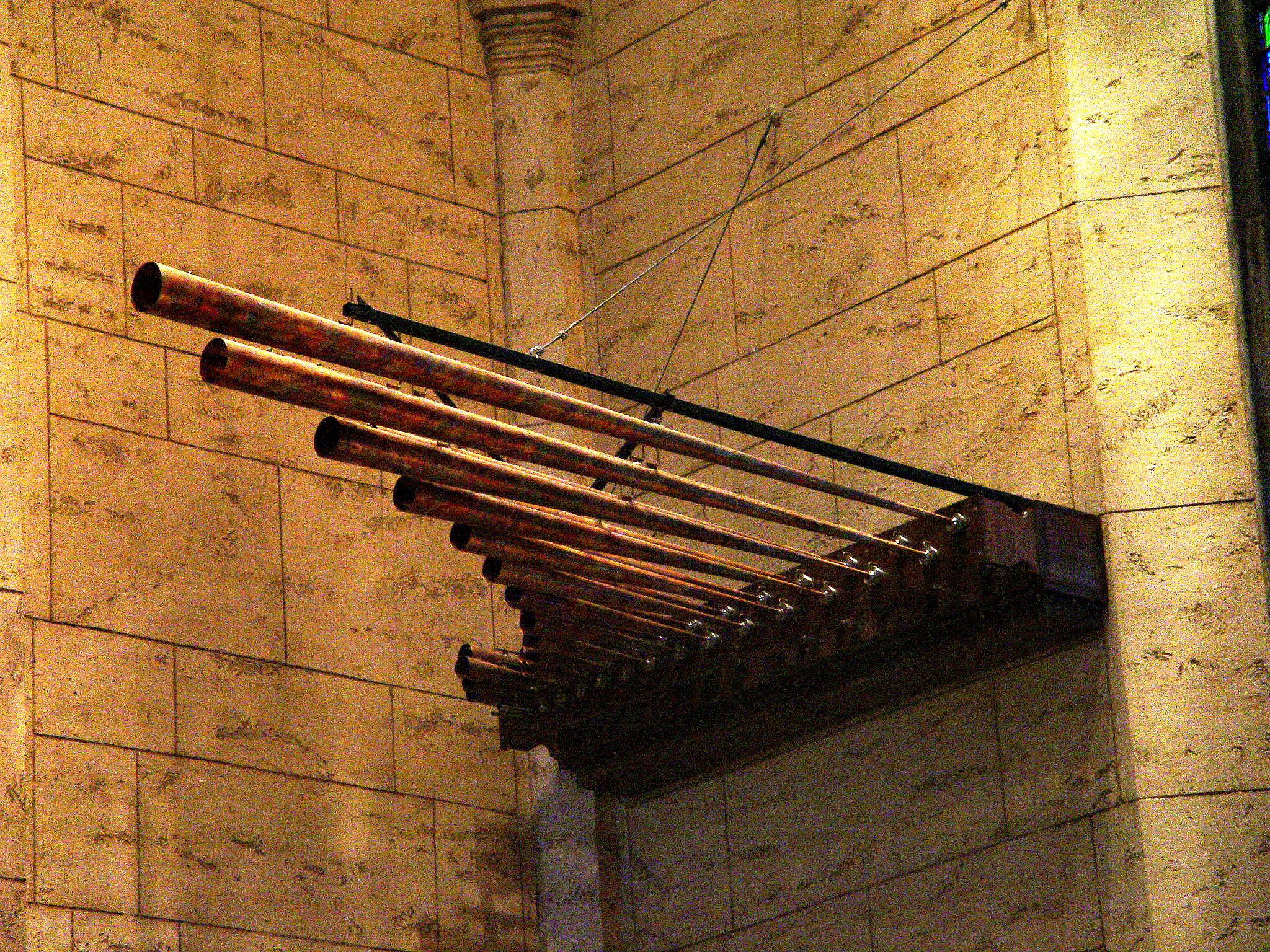

| Swell 16 | Trompette En Chamade 8 | Great 8 | |
| Swell Unison Off | Swell 8 | ||
| Swell 4 | Swell 4 | ||
| Chancel 8 | |||
| Chancel 4 | |||
| Trompette En Chamade 8 | |||
| ACCESSORIES |
|||
| COUPLERS | FINGER PISTONS | TOE STUDS | PEDAL MOVEMENTS |
| To Pedal | General 1 - 12 | General 1 - 12 | Swell Expression (bal.) |
| Great 8 | Swell 1 - 8 | Pedal 1 - 6 | Chan. Expression (bal.) |
| Swell 8,4 | Sw Ped (rev) | Gr to Ped Rev (rev) | Crescendo (bal.) |
| Chancel 8,4 | Sw Gr (rev) | ||
| Sw Chan (rev) | Carilon Control | ||
| To Great | Great 1 - 8 | Rotary Dial 1 - 6 | |
| Swell 16,8,4 | Gr Ped (rev) | ||
| Chancel 16,8,4 | Chancel 1 - 8 | Misc. Controls | |
| Chan Ped (rev) | Chancel Console On | ||
| To Swell | |||
| Chancel 8 | |||
| To Chancel | |||
| Swell 16,8,4 | |||
| Great 8 | |||
 |
|
 |
 |
 |
|
 |
|
