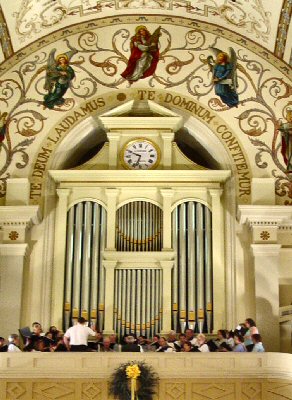

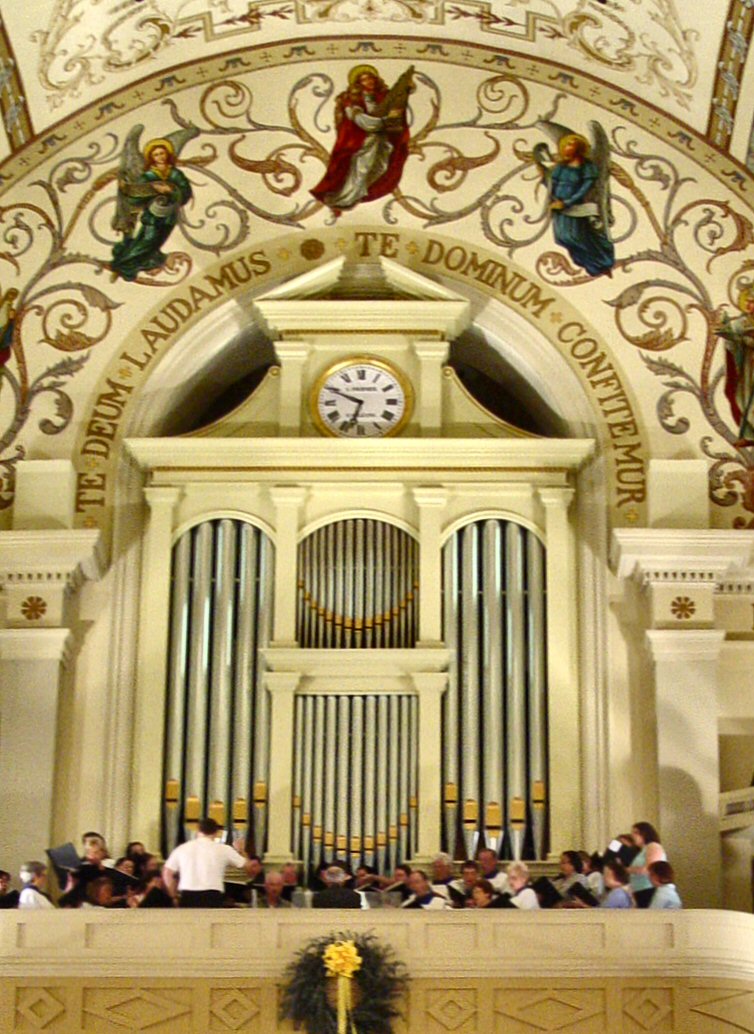

SPECIFICATION FOR THE HOLTKAMP PIPE ORGAN
Saint Louis Cathedral, New Orleans, LA.

CLICK IMAGES TO SEE ENLARGEMENT

PEDAL
GREAT
RECIT
POSITIF EXPRESSIVE
Resultant 32 Montre 16 Bourdon 16 Quintaden 16
Contra Bass 16 Montre I 8 Montre I 8 Montre 8
Montre 16 Montre II 8 Montre II 8 Viola Douce 8
Soubase 16 Flute Harmonic 8 Viola de Gamba 8 Viola Celeste 8
Bourdon 16 Bourdon de Cambon 8 Viola Celeste 8 Cor de Nuit 8
Quintaden 16 Octave 4 Bourdon 8 Quintaden 8
Huitieme 8 Flute en Fusse 4 Octave Geigen 4 Prestant 4
Soubase 8 Quint 2-2/3 Flute Triangulaire 4 Flute a Cheminee 4
Bourdon 8 Superoctave 2 Nazard 2-2/3 Nazard 2-2/3
Grosse Quinte 5-1/3 Flute 2 Cornet II Doublette 2
Prestant 4 Grand COrnet V Piccolo 2 Quarte do Nazard 2
Soubase 4 Mixture IV Larigot 1-1/3 Tierce 1-3/5
Cor de Nuit 4 Fourniture III Plen Jeu IV Scharf IV
Dor de Nuit 2 Tuba Harmonique 16 Cymbal III Cymbal III-IV
Grand Fourniture IV Tuba Harmonique 8 Trompette 16 Trumpet 8
Contra Bombarde 32 Trumpet 8 Trompette 8 Cromorne 8
Bombarde 16 Trompette en Chamade 8 Oboe 8 Tremulant
Trompette 16 Zimbelstern Clarion du Roi 4 Tuba Harmonique 16
Trompette 8   Tremulant Tuba Harmonique 8
Clarion 4   Recit to Recit 16 Trumpette en Chamade 8
Tuba Harmonique 16   Recit to Recit 4
Tuba Harmonique 8
Trompette en Chamade 8




COUPLERS:
Great to Pedal 8
Great to Pedal 8, 4
Choir to Pedal 8
Swell to Great 16, 8
Choir to Great 16, 8
Swell to Choir 16, 8

REVERSIBLES:
Great to Pedal (toe stud and thumb piston)
Swell to Pedal (toe stud and thumb piston)
Choir to Pedal (toe stud and thumb piston)

COMBINATIONS:
Generals 1-2-3-4-5-6-7-8-9-10-11-12 (Toe stud and Piston)
Pedal 1-2-3-4-5-6-7-8 (toe piston)
Great 1-2-3-4-5-6-7-8 (Piston)
Swell 1-2-3-4-5-6-7-8 (Piston)
Choir 1-2-3-4-5-6-7-8 (Piston)
General cancel
(Capture system by Solid State Logic Limited- 25 levels of memory)

Organ dedicated April 25, 2004. Made possible through the generosity of Dr. Elise Cambon




Dr. Elise Cambon, 65 years of service to the Cathedral and its music programs. (Note: Dr. Cambon departed this life on December 30, 2007. She will be sadly missed by her colleagues, friends, and students.)
